    HSS & CARBIDE CUTTING TOOLS


    Forms Tools


    Gear Cutting Tools

Products

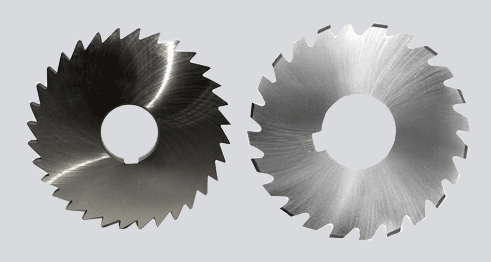

SLITTING SAWS

For all metal cold sawing applications from general fabrication to high speed tube processing, tube & pipe slotting, and pipe cutting with orbital type machines.

We produce diameter from 25mm to 250mm with or without hub. We also manufacture custom saws as per customer’s requirement.

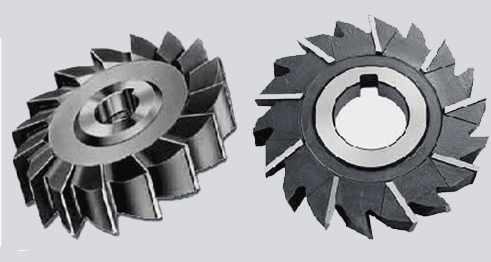

SIDE & FACE CUTTER

Designed with strip land and tooth form to give strength and more chip clearance. Special note is to be taken of the form at the back of the teeth which gives greater support to the cutting edge. The cutters are well adapted for a wide variety of production operations and are commonly used in pairs for straddle milling. Staggered Tooth Side and Face Cutters HSS Designed for deep slot operations in steel and in most soft materials. They have alternative right and left hand spiral teeth which provide ample chip clearance for fast stock removal. Our manufacturing range from dia 50mm to 250 mm.

ANGLE MILLING CUTTERS

Angle Cutters (Single Angle Cutters and Double or Equal Angle Cutters) are milling cutters with their cutting face angled with respect to the axis of rotation. There are two types of angle cutters that we manufacture and stock which are the Single Angle Cutters and Double (Equal) Angle Cutters.

Single Angle Cutters are those which have teeth on the conical or angular face of the cutter and also on the large flat side. Double or Equal Angle Cutterd have V- shaped (equal angled) teeth with both conical surfaces at an angle to their end faces. Single Angle and Double (Equal) Angle Cutters are cutting tools commonly used for cutting various kinds of metals.

END MILL CUTTER (HSS & SOLID CARBIDE)

Centre cutting as standard. For maximum strength when milling harder materials where rapid swarf removal is not needed. 4 flute milling cutters have one of the strongest tooth structures available in solid cutters. Manufactured to Works Standards. We produce dia from 2mm to 50mm.





CONVEX AND CONCAVE FORM RELIEVED MILLING CUTTERS

Excellent quality delivered to your door anywhere in the world. Convex Cutters HSS solid cutters for milling concave forms on components. Convex Cutters used for milling concave half circles.

Concave Cutters are machine form relieved - the profile remains constant throughout cutter life, provided that on re-shapening, the face of the tooth is ground Radial-to-Centre.



SHELL END MILL CUTTERS

Shell Mills are designed for both end and face milling operations They will fit standard shell and mill arbors. Right hand cutters with right hand helix and left hand cutters with left hand helix are standard. All Shell End Mills have standard keyway and a drive slot.






CYLINDRICAL CUTTERS

Cylindrical milling cutters are profile sharpened cutters having teeth on peripheral surface only. cylindrical milling cutters produce relatively flat surface parallel to axis of rotation and are ideal for application that required high rate of stock removal. Having no side teeth, these cutters are used mostly for surface cutting.





REAMERS

HSS & Carbide brazed Hand and Machine reamers produced in high quality and accuracy .We manufacture in different standards like DIN , IS, BS with high and low helix angle. Manufacturing range 3mm to 50mm.

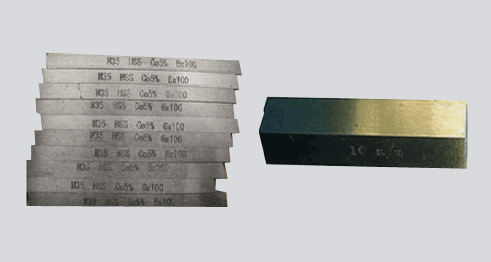

HSS TOOL BIT BLANKS ( LATHE TOOL )

HSS tool bit are used for general lathe work. We produce HSS tool bit in different grades of HSS such as M2, M35, M42, T42. Cobalt grades for increased wear resistance.








CHAIN SPROCKET CUTTER

HSS Sprocket Cutters are machine form-relieved designed for cutting sprocket teeth of roller-chain wheels. Sprocket Cutters are machine form relieved - the profile remains constant throughout cutter life, provided that on re-shapening, the face of the tooth is ground Radial-to-Centre. Conform to standard BS228 (3 cutters per set).

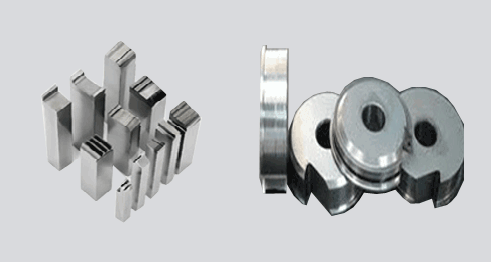

SPECIAL FORM TOOLS

STI combines expertise in all types of electrical discharge machining with CNC milling, optical profile grinding and grinding to produce high precision special form tools . We employ sophisticated CAD and CAM technologies to create complex shapes in HSS and Carbide. Our team approach allows us to make difficult parts quickly and accurately.




T-SLOT MILLING CUTTER

HSS T-Slot Cutters used for machining T-slots on slide tables, fixtures etc.,. For milling structural, carburized and heat treated steel up to 900N/mm2. Sizes up to 16mm and 1/2" have 6 flutes and 18mm and 5/8" upwards have 8 flutes. Flute form 12 RH/LH.






INVOLUTE GEAR CUTTERS

  • For spur gears with a 14-1/2° or 20° pressure angle
  • Form relieved to allow resharpening many times without changing the form
  • 8 cutters are made for each pitch








































   P.S. WE DO MANUFACTURE CUSTOM TOOLS AND SAWS AGAINST DRAWING/SAMPLE
